Eco Friendly Food Container Making Machine

Eco Friendly Food Container Making Machine
Eco Friendly Food Container Making Machine
Send Inquiry
Product Code : 25
Product Description

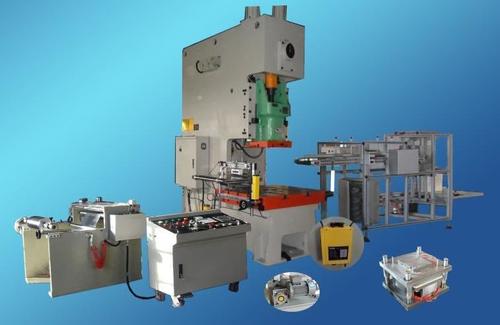

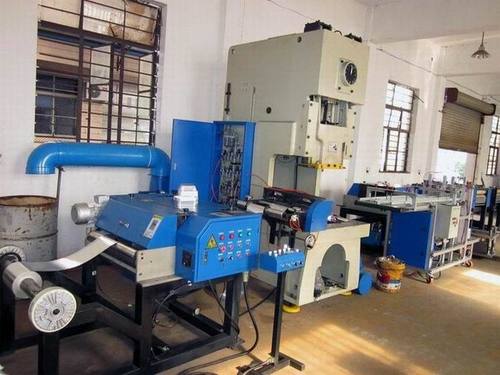

Eco Friendly Food Container Making Machine

This machine adopts programmable logic controller (PLC) as the controlling’s reliable. The feeding length, producing speed and other parameter are easily set, this is integration of Gas& Electrical centralized control, automated production.The feeding is controlled by stepper system, the feeding length is accurate And can be adjusted freely from 20m to 999m.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch-on-off, rigid over-load protector to protect the press.In short, this is a high accuracy and reliability press

  • Pressure: 450KN
  • Body work plate hole dimension: 300*300mm
  • Stroke time: 60-100times/min(3600—6000pcs/hour for one cavity mould)
  • Stroke height: 180mm
  • Work plate thickness: 50mm100mm
  • Max. die Installation height: 390mm
  • Dimension of slide block bottom, size of handle hole:320*145mm,18
  • The distance from the center of slice to the body: 340mm
  • The height adjustment for die: 80mm
  • Die handle hole dimension: 50*60mm
  • Work plate dimension: 660*1000 mm
  • Dimension: 1915*1280*2500mm (L*W*H)
  • Motor capacity:5.5KW
  • Net weight: 4800kg
  • Voltage:3-380v 50Hz /4wires
