Foil Container Machine

Foil Container Machine
Foil Container Machine
Send Inquiry
Product Code : AF 03
Brand Name : SAPP PAPER TECHNIQ
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

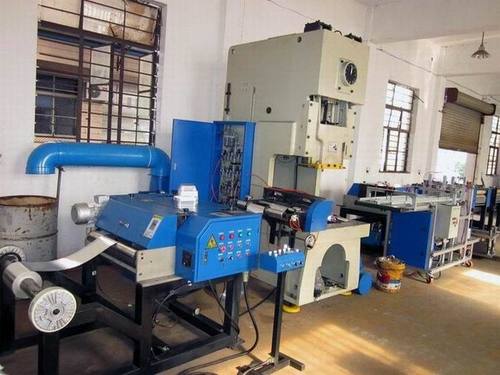

45 Tons Foil Container Machine

  • Pressure: 450KN
  • Body work plate hole dimension: 300*300mm
  • Stroke time: 60-100 times/min (3600-6000 pcs /hour for one cavity mould)
  • Stroke height: 180mm
  • Work plate thickness: 50mm\ 100mm
  • Max. die Installation height: 390mm
  • Dimension of slide block bottom, size of handle hole:320*145mm, ¢ 18
  • The distance from the center of slice to the body: 340 mm
  • The height adjustment for die: 80 mm
  • Die handle hole dimension: ¢ 50*60 mm
  • Work plate dimension: 660*1000 mm
  • Dimension: 1915*1280*2500mm (L*W*H)
  • Motor capacity:5.5KW
  • Net weight: 4800kg
  • Voltage 3-380v 50Hz /4wires
Trade Information
  • Payment Terms
  • Others
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
